-01Capabilities
PCB Manufacturing Capabilities
Review PCB Manufacturing Capabilities capabilities, required project inputs, and the evidence that must be confirmed for your order.
-02Capabilities Full
Capability data
DatasetParameterSampleMass production
Conventional rigid PCB capabilityLayer Count50L36L
Conventional rigid PCB capabilityFinished Board Thickness0.2-15.0mm0.3-7.0mm
Conventional rigid PCB capabilityThickness Tolerance±8%±8%
Conventional rigid PCB capabilityMin Trace/Space1.5mil/1.5mil2mil/2mil
Flexible PCB capabilityLayer Count1216
Flexible PCB capabilityMinimum Dielectric Thickness (μm)12.512.5
Flexible PCB capabilityMinimum BGA Pitch (μm)150100
Flexible PCB capabilityMinimum Board Thickness (μm)5050
Rigid-flex PCB capabilityLayer Count20L18L
Rigid-flex PCB capabilityPanel Size400×540mm400×540mm
Rigid-flex PCB capabilityFinished Board Thickness0.25-5.0mm0.25-3.2mm
Rigid-flex PCB capabilityMin Trace/Space1.5mil/1.5mil2mil/2mil
High-frequency and high-speed PCB capabilityMaterial SystemPTFE, Hydrocarbon Resin, Other MaterialsPTFE+Ceramic, PTFE+Glass Fiber+Ceramic, PTFE+Glass Fiber
High-frequency and high-speed PCB capabilityLayer Count24L20L
High-frequency and high-speed PCB capabilityPanel Size850×700mm720×650mm
High-frequency and high-speed PCB capabilityProfile Tolerance±0.05mm±0.10mm
The latest supplied columns are from 2023 and require factory confirmation before publication or quotation.
-03Process
From factory release to inspection
- 01
File review
- 02
Engineering questions
- 03
Stack-up and material confirmation
- 04
Fabrication
- 05
Inspection and test
- 06
Packing and delivery
-04Factory Process

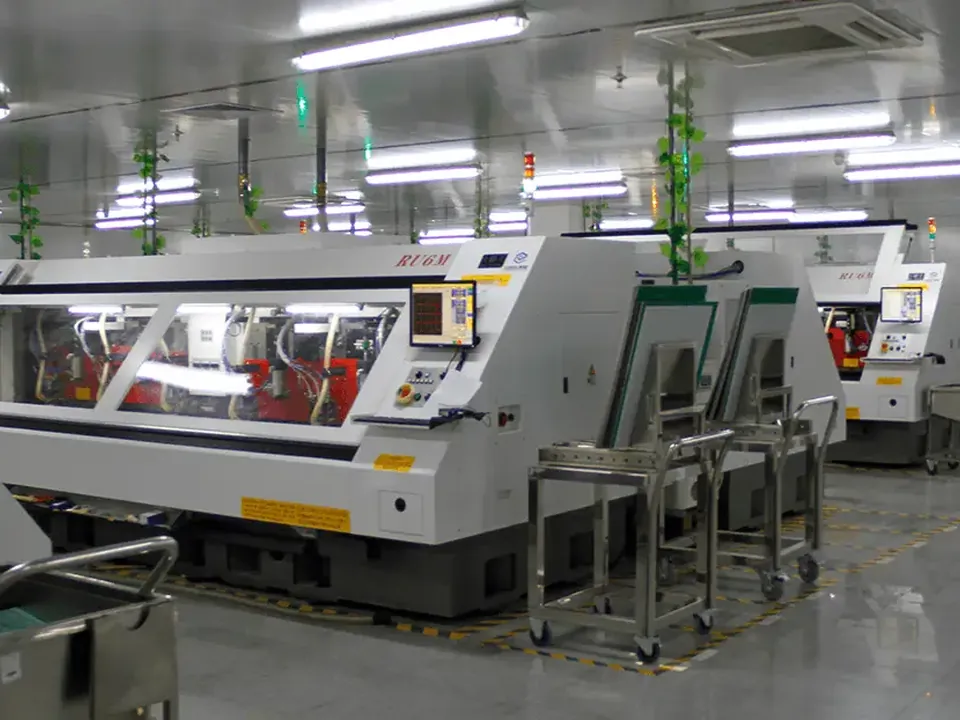

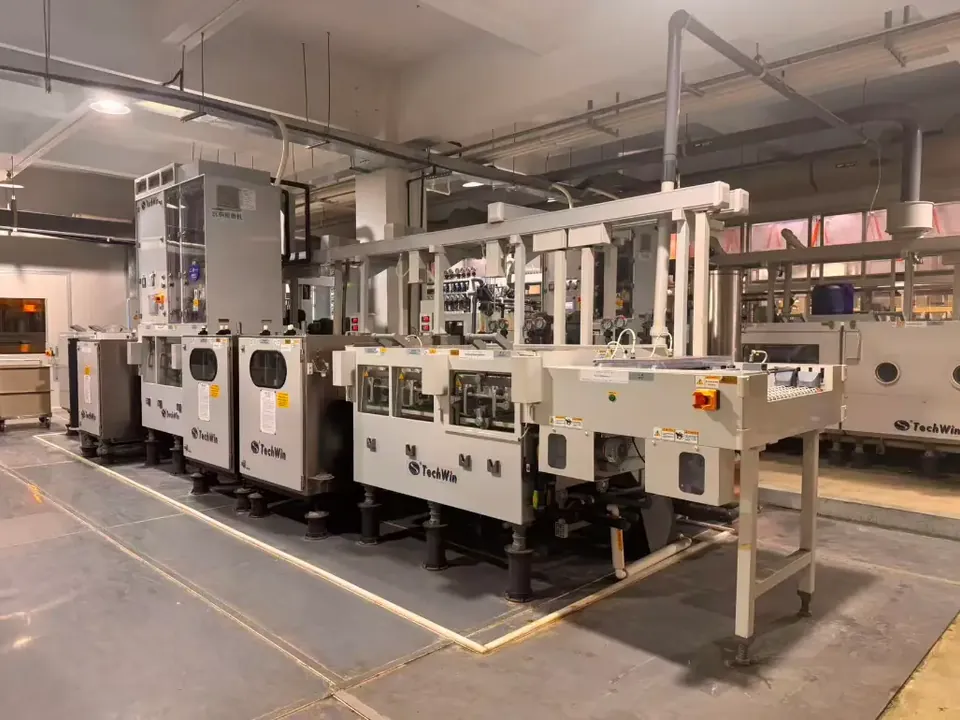

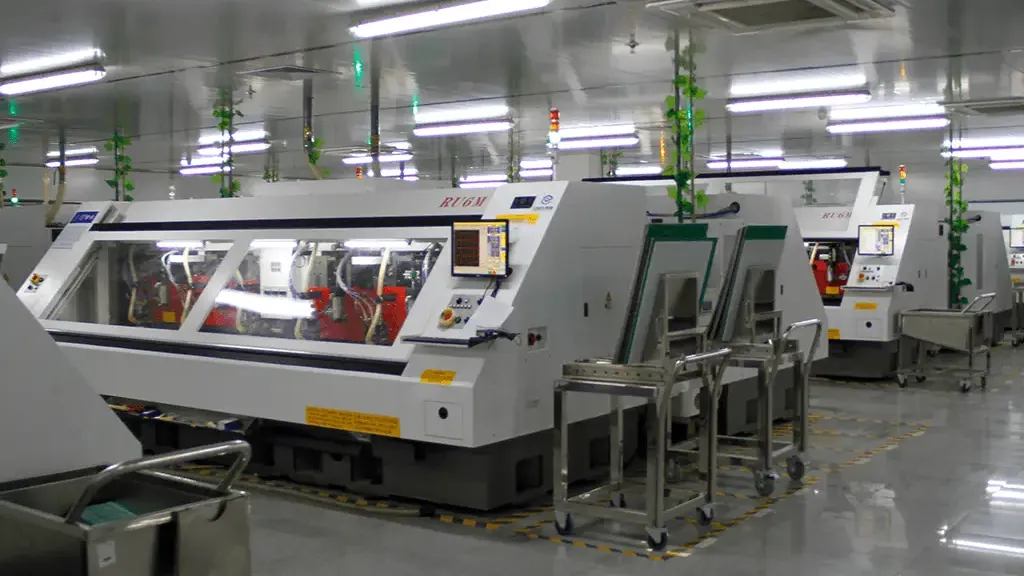

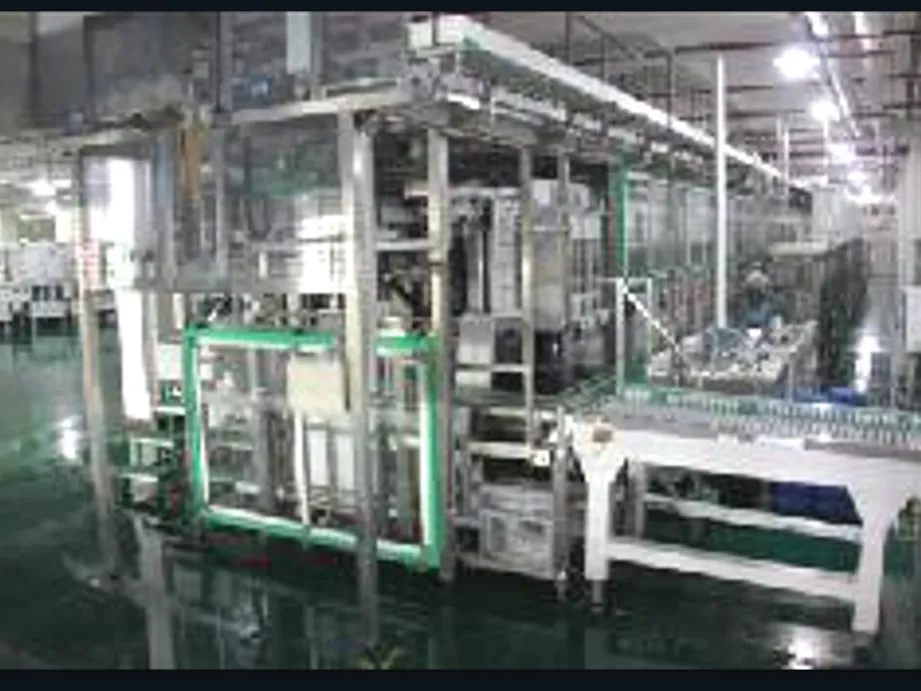

Approved media
-05Quality Review
Quality control
- Standard Pcb Workdays
- 2-7
- Expedited Prototype Hours
- 24-48
- Standard Pcba Workdays
- 3-12
- Start Condition
- payment received and files confirmed and engineering questions closed
- Qualifier
- Ranges are planning guidance, not an order commitment.
-06RFQ
Send the board specification for engineering review
Send Gerber, ODB++, BOM, drawings, stack-up, quantity, and target delivery where applicable. Lead time and commercial terms are confirmed per order.
