Prototype PCB Manufacturing

Review Prototype PCB Manufacturing capabilities, required project inputs, and the evidence that must be confirmed for your order.

Request a quoteSend Gerber files

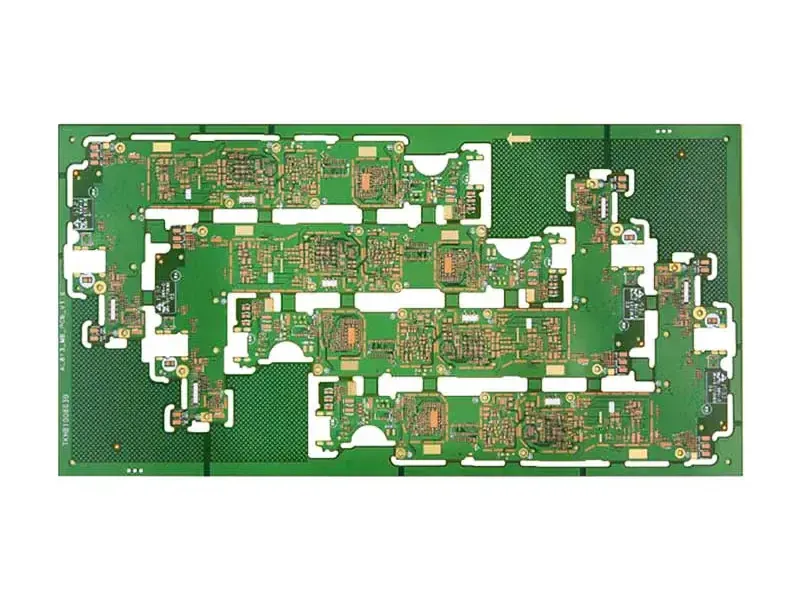

Green PCB panel prepared for SMT assembly

-02Capabilities Prototype

Capability data

DatasetParameterSampleMass production
Conventional rigid PCB capabilityLayer Count50L36L
Conventional rigid PCB capabilityFinished Board Thickness0.2-15.0mm0.3-7.0mm
Conventional rigid PCB capabilityThickness Tolerance±8%±8%
Conventional rigid PCB capabilityMin Trace/Space1.5mil/1.5mil2mil/2mil
Flexible PCB capabilityLayer Count1216
Flexible PCB capabilityMinimum Dielectric Thickness (μm)12.512.5
Flexible PCB capabilityMinimum BGA Pitch (μm)150100
Flexible PCB capabilityMinimum Board Thickness (μm)5050
Rigid-flex PCB capabilityLayer Count20L18L
Rigid-flex PCB capabilityPanel Size400×540mm400×540mm
Rigid-flex PCB capabilityFinished Board Thickness0.25-5.0mm0.25-3.2mm
Rigid-flex PCB capabilityMin Trace/Space1.5mil/1.5mil2mil/2mil
High-frequency and high-speed PCB capabilityMaterial SystemPTFE, Hydrocarbon Resin, Other MaterialsPTFE+Ceramic, PTFE+Glass Fiber+Ceramic, PTFE+Glass Fiber
High-frequency and high-speed PCB capabilityLayer Count24L20L
High-frequency and high-speed PCB capabilityPanel Size850×700mm720×650mm
High-frequency and high-speed PCB capabilityProfile Tolerance±0.05mm±0.10mm

The latest supplied columns are from 2023 and require factory confirmation before publication or quotation.

-03Products Pcb

Approved media

Green PCB panel prepared for SMT assembly

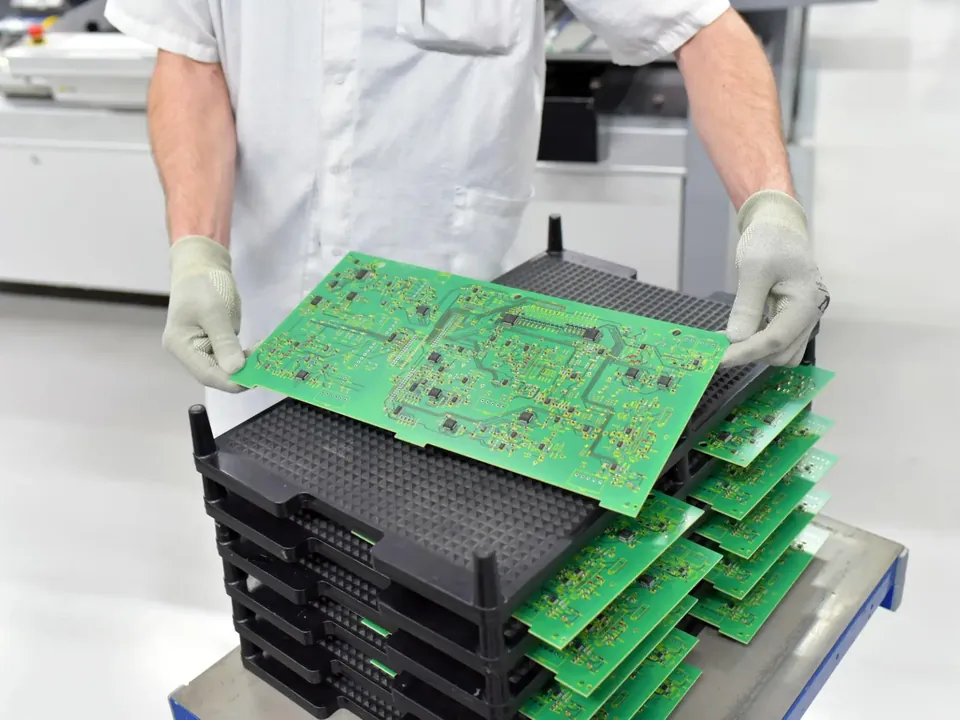

Bare boards being handled between fabrication steps

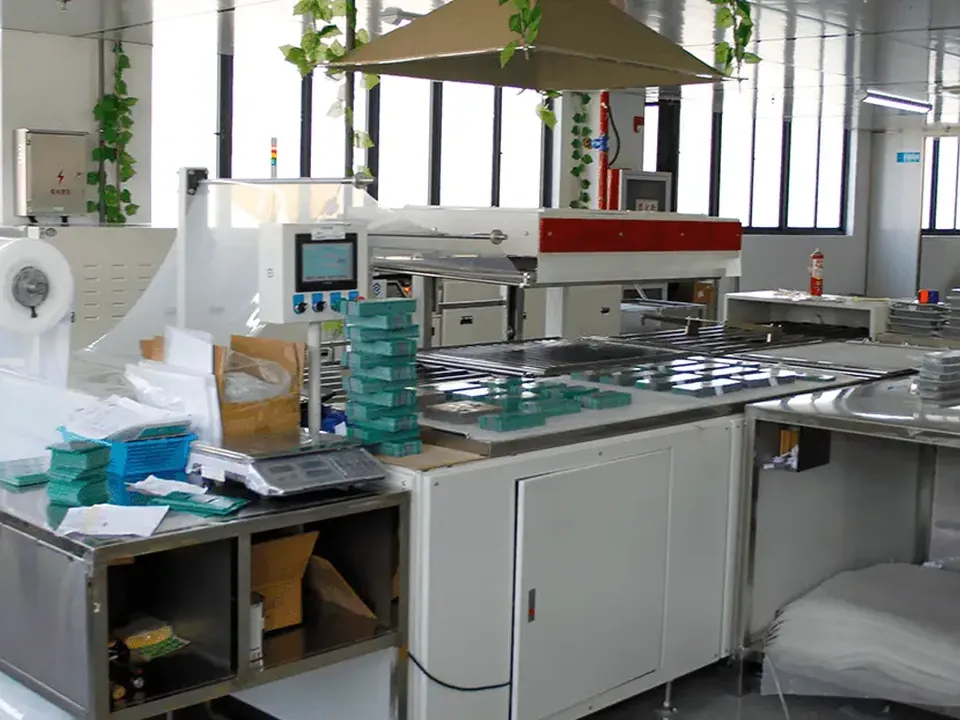

Packaging line preparing finished boards for shipment

-04Industry

Applications

Industrial automation and robotics application areaIndustry

PCBs for Industrial Electronics

Application fit requires project evidence; no customer relationship is implied.

Satellite communication antenna installationIndustry

PCBs for Radar and RF Systems

Application fit requires project evidence; no customer relationship is implied.

Data-processing server board with dual processor socketsIndustry

PCBs for High-Speed Computing

Application fit requires project evidence; no customer relationship is implied.

Unmanned aerial vehicle in flightIndustry

PCBs for Embedded and Mini PC Systems

Application fit requires project evidence; no customer relationship is implied.

LED board array with populated emittersIndustry

PCBs for Lighting Electronics

Application fit requires project evidence; no customer relationship is implied.

Circuit boards from consumer electronics productsIndustry

PCBs for Home Electronics

Application fit requires project evidence; no customer relationship is implied.

-05Process

From prototype to production

  1. 01

    File review

  2. 02

    Engineering questions

  3. 03

    Stack-up and material confirmation

  4. 04

    Fabrication

  5. 05

    Inspection and test

  6. 06

    Packing and delivery

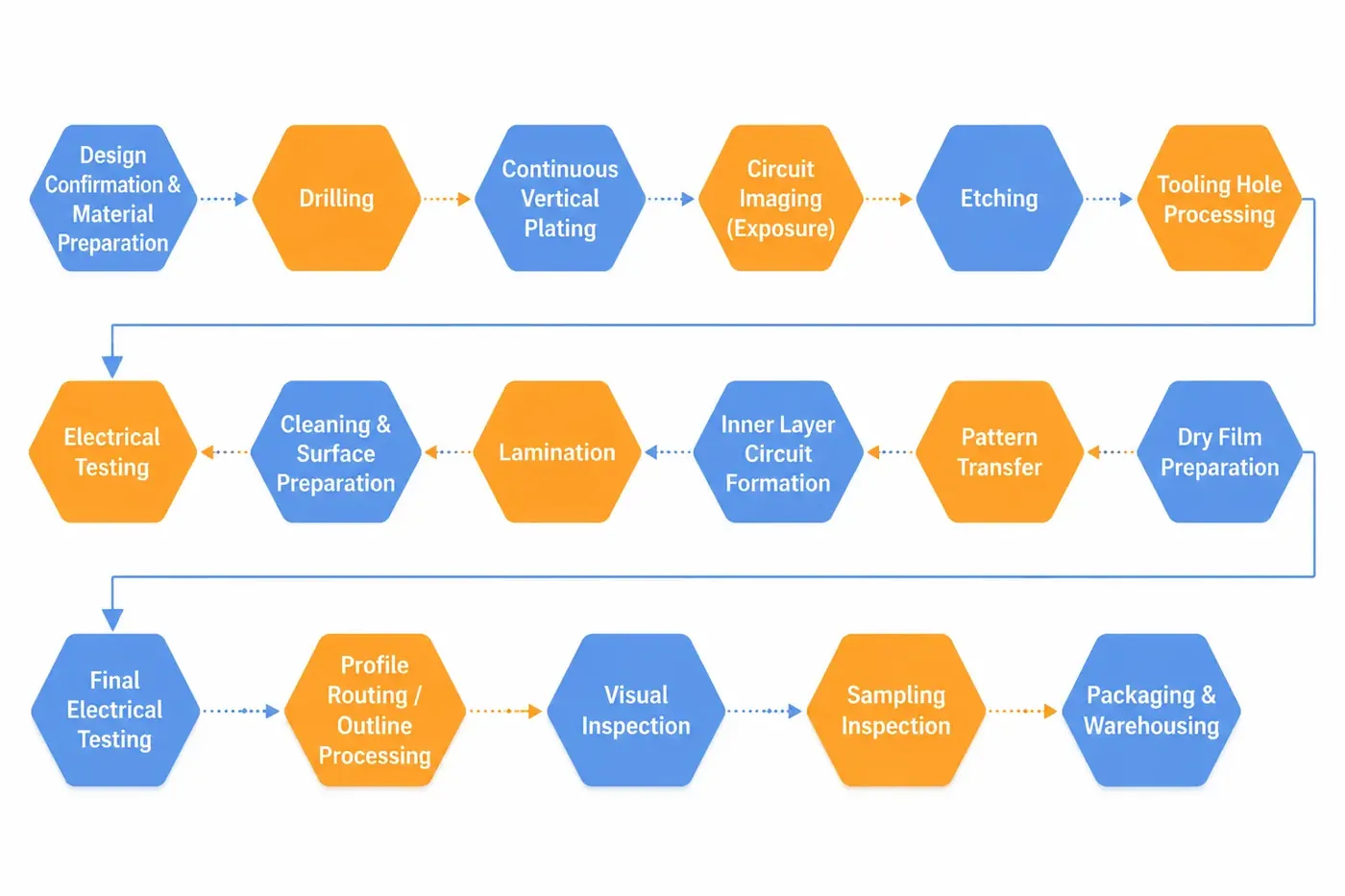

Flowchart of the rigid PCB manufacturing process

-06RFQ

Send the board specification for engineering review

Send Gerber, ODB++, BOM, drawings, stack-up, quantity, and target delivery where applicable. Lead time and commercial terms are confirmed per order.

Send Gerber filesRequest a quote
