Rogers PCB Material

Review Rogers PCB Material capabilities, required project inputs, and the evidence that must be confirmed for your order.

Request a quoteSend Gerber files

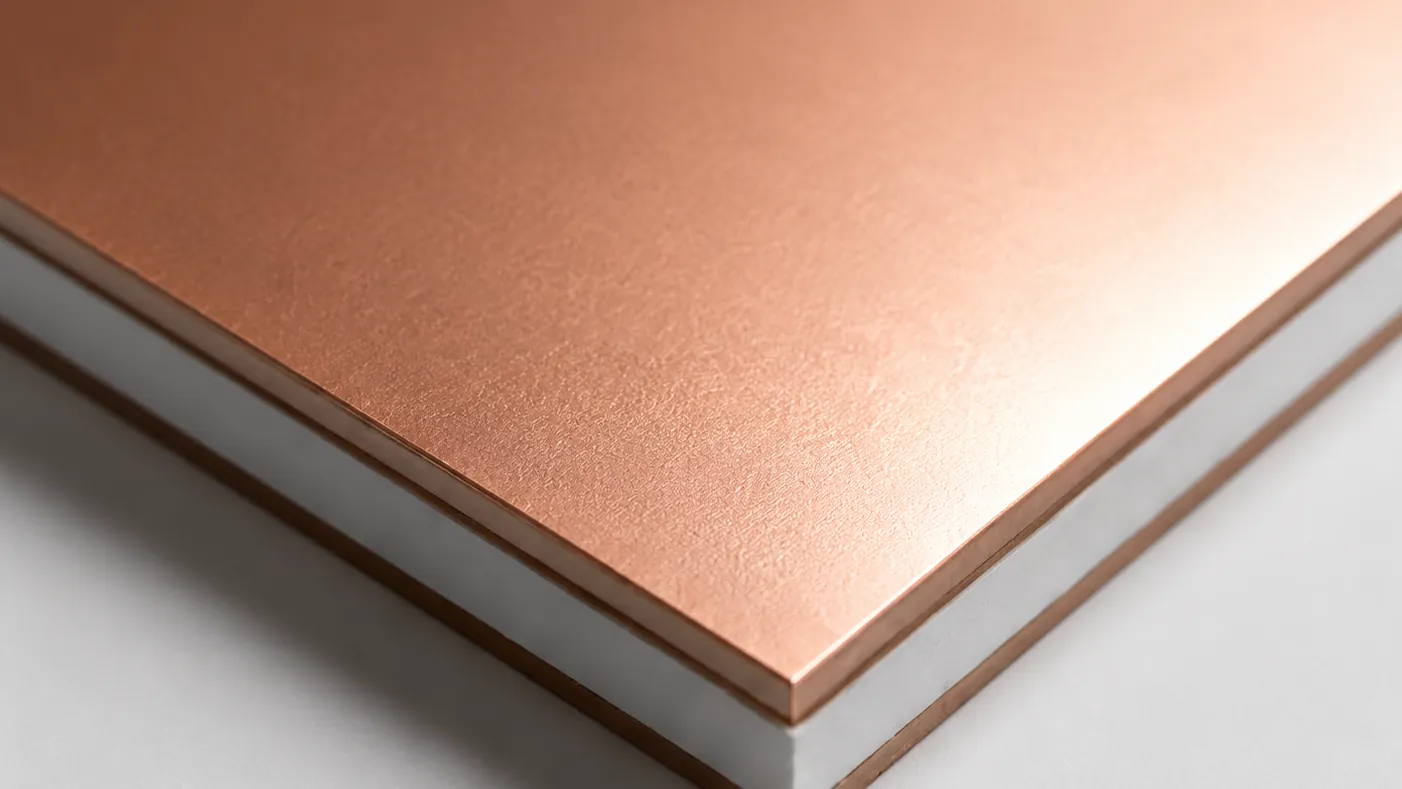

High-frequency laminate build illustration

-02Materials Rogers

Material properties

MaterialReference modelsTypical fitReview focusRFQ note
Rogers RO4000 familyRogers RO4003C, Rogers RO4350B, Rogers RO4835, Rogers RO4360G2RF, antenna, power amplifier, GNSS, and hybrid RF plus FR-4 stack-ups.Dk/Df at frequency, UL requirement, oxidation resistance, bonding film, hybrid stack-up.RO4000 materials are generally more FR-4-process-compatible than PTFE-based materials.
Rogers RO3000 and RT/duroidRogers RO3003, Rogers RO3006, Rogers RT/duroid 5870, Rogers RT/duroid 5880Low-loss microwave, mmWave, radar, and satellite communication circuits.PTFE process route, dimensional stability, copper foil, plasma/desmear, hole reliability.Confirm construction, prepreg or bondply, copper, and availability for each RFQ.

These are common material classes and reference laminate models for RFQ discussion. Exact brand, grade, stack-up, certificate scope, and availability are confirmed per project.
