PCBs for Radar and RF Systems

Review PCBs for Radar and RF Systems capabilities, required project inputs, and the evidence that must be confirmed for your order.

Request a quoteSend Gerber files

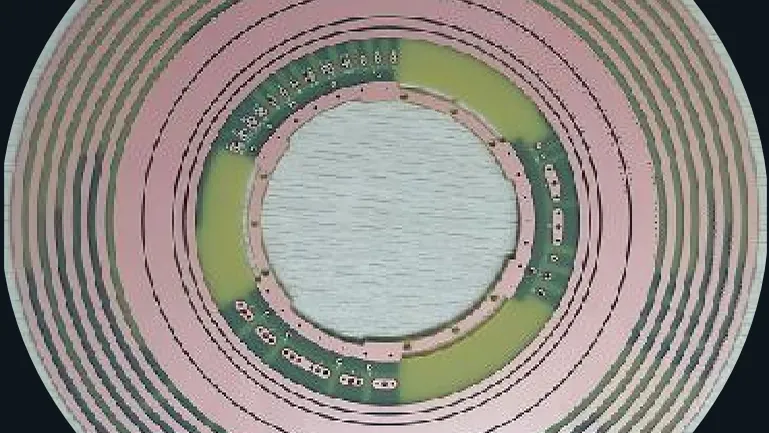

Circular radar sensor board with concentric antenna structures

-02Industry

Applications

Industrial automation and robotics application areaIndustry

PCBs for Industrial Electronics

Application fit requires project evidence; no customer relationship is implied.

Data-processing server board with dual processor socketsIndustry

PCBs for High-Speed Computing

Application fit requires project evidence; no customer relationship is implied.

Unmanned aerial vehicle in flightIndustry

PCBs for Embedded and Mini PC Systems

Application fit requires project evidence; no customer relationship is implied.

LED board array with populated emittersIndustry

PCBs for Lighting Electronics

Application fit requires project evidence; no customer relationship is implied.

Circuit boards from consumer electronics productsIndustry

PCBs for Home Electronics

Application fit requires project evidence; no customer relationship is implied.

-03Capabilities Rf

Capability data

DatasetParameterSampleMass production
High-frequency and high-speed PCB capabilityMaterial SystemPTFE, Hydrocarbon Resin, Other MaterialsPTFE+Ceramic, PTFE+Glass Fiber+Ceramic, PTFE+Glass Fiber
High-frequency and high-speed PCB capabilityLayer Count24L20L
High-frequency and high-speed PCB capabilityPanel Size850×700mm720×650mm
High-frequency and high-speed PCB capabilityProfile Tolerance±0.05mm±0.10mm
High-frequency and high-speed PCB capabilitySlot ToleranceNormal Slot ±0.08, Routing Slot ±0.10Normal Slot ±0.10, Routing Slot ±0.13
High-frequency and high-speed PCB capabilityLayer Registration2mil3mil
High-frequency and high-speed PCB capabilityHybrid LaminationPTFE + Glass Ceramic + FR4PTFE + Glass Ceramic + FR4
High-frequency and high-speed PCB capabilityMinimum Hole Size0.075mm0.10mm
High-frequency and high-speed PCB capabilityMinimum Hole Spacing0.20mm0.25mm
High-frequency and high-speed PCB capabilityHole Diameter Tolerance±0.05mm±0.075mm
High-frequency and high-speed PCB capabilityMaximum Aspect Ratio16:112:1
High-frequency and high-speed PCB capabilityHole Copper UniformityCOV≤5%COV≤7%
High-frequency and high-speed PCB capabilityResin Filled Via Aspect Ratio12:112:1
High-frequency and high-speed PCB capabilityVia TypeThrough Hole / Blind ViaThrough Hole / Blind Via
High-frequency and high-speed PCB capabilityTrace Width Tolerance±0.6mil±1mil
High-frequency and high-speed PCB capabilityImpedance Tolerance±5%±8%

No effective date is present in the supplied CSV; confirm values before publication or quotation.

-04Products Pcb

Approved media

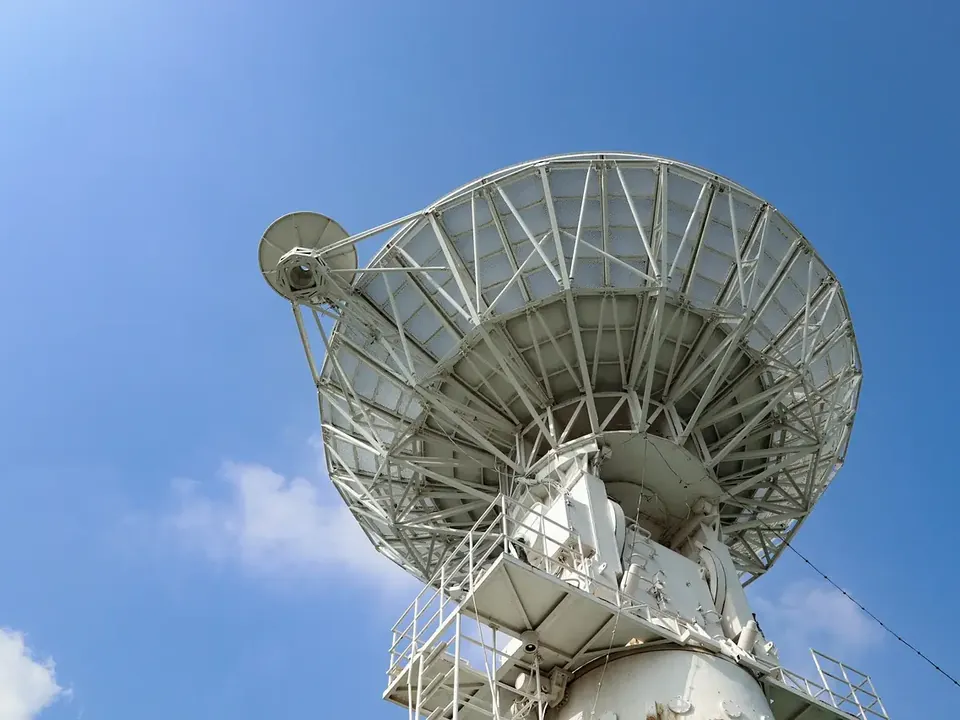

Satellite communication antenna installation

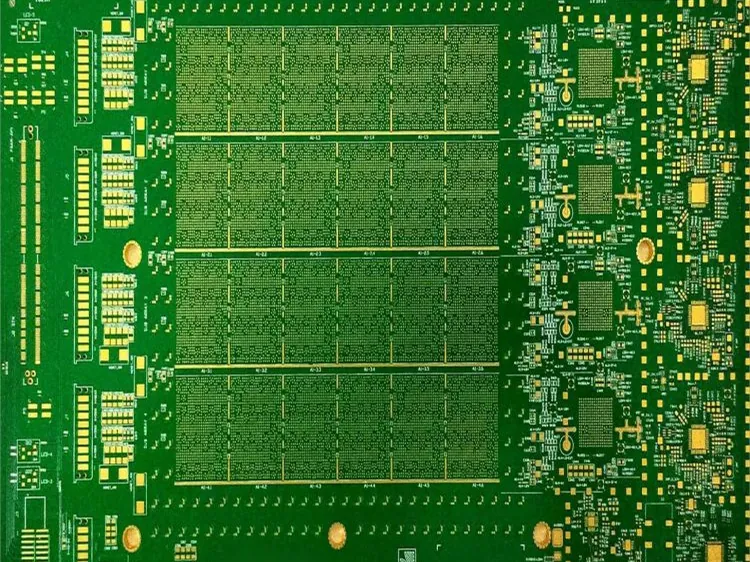

Circuit board for low-earth-orbit satellite communication equipment

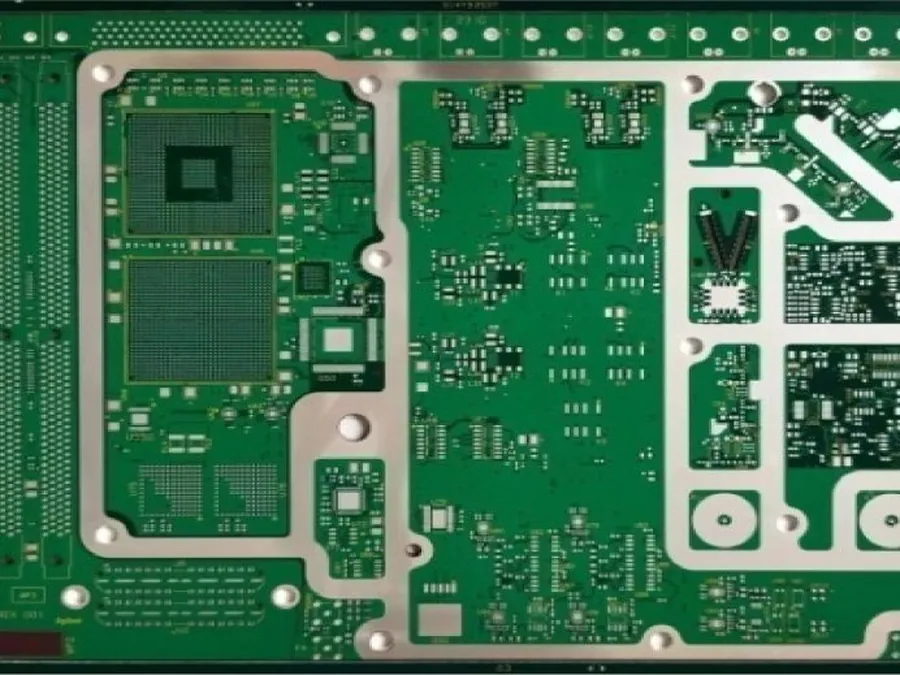

Circuit board for fibre-optic transmission equipment

-05RFQ

Send the board specification for engineering review

Send Gerber, ODB++, BOM, drawings, stack-up, quantity, and target delivery where applicable. Lead time and commercial terms are confirmed per order.
