PCBs for Automotive Electronics

Review PCBs for Automotive Electronics capabilities, required project inputs, and the evidence that must be confirmed for your order.

Request a quoteSend Gerber files

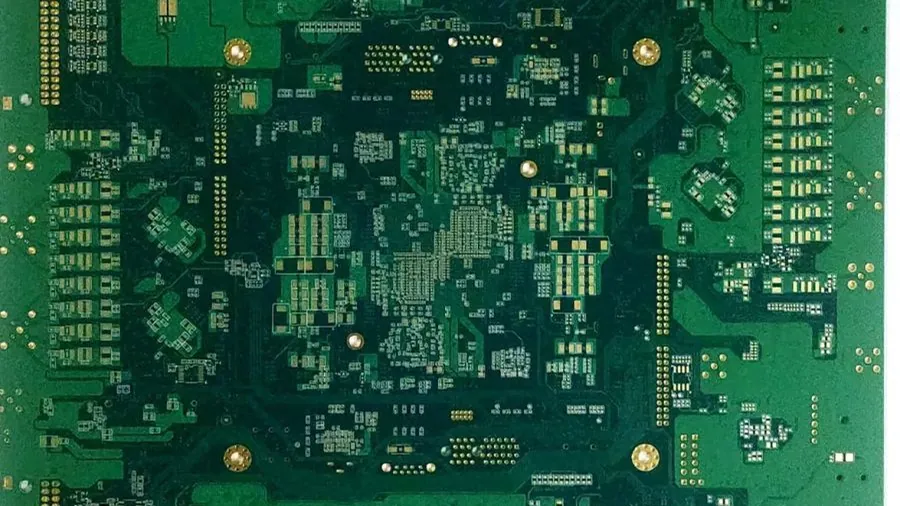

In-vehicle system circuit board with dense component areas

-02Industry

Applications

Industrial automation and robotics application areaIndustry

PCBs for Industrial Electronics

Application fit requires project evidence; no customer relationship is implied.

Satellite communication antenna installationIndustry

PCBs for Radar and RF Systems

Application fit requires project evidence; no customer relationship is implied.

Data-processing server board with dual processor socketsIndustry

PCBs for High-Speed Computing

Application fit requires project evidence; no customer relationship is implied.

Unmanned aerial vehicle in flightIndustry

PCBs for Embedded and Mini PC Systems

Application fit requires project evidence; no customer relationship is implied.

LED board array with populated emittersIndustry

PCBs for Lighting Electronics

Application fit requires project evidence; no customer relationship is implied.

Circuit boards from consumer electronics productsIndustry

PCBs for Home Electronics

Application fit requires project evidence; no customer relationship is implied.

-03Capabilities Automotive

Capability data

DatasetParameterSampleMass production
Conventional rigid PCB capabilityLayer Count50L36L
Conventional rigid PCB capabilityFinished Board Thickness0.2-15.0mm0.3-7.0mm
Conventional rigid PCB capabilityThickness Tolerance±8%±8%
Conventional rigid PCB capabilityMin Trace/Space1.5mil/1.5mil2mil/2mil
Conventional rigid PCB capabilityMin Hole-to-Trace Clearance5mil5mil
Conventional rigid PCB capabilityCopper Weight1-12oz1/3-8oz
Conventional rigid PCB capabilityLayer Registration Accuracy0.8mil1mil
Conventional rigid PCB capabilityMin Through Hole Diameter0.075mm0.10mm
Conventional rigid PCB capabilityMin Blind/Buried Via Diameter0.05mm0.075mm
Conventional rigid PCB capabilityMax Aspect Ratio35:130:1
Conventional rigid PCB capabilityEtching Tolerance±10%/±0.8mil±10%/±1mil
Conventional rigid PCB capabilityMin Solder Bridge2mil3mil
Conventional rigid PCB capabilityImpedance Control Tolerance±5%±7%
Conventional rigid PCB capabilityHDI Level9th Order5th Order
Conventional rigid PCB capabilitySurface FinishENIG, Hard Gold, Immersion Tin, Immersion Silver, OSP, CarbonENIG, Hard Gold, Immersion Tin, Immersion Silver, OSP, Carbon
Conventional rigid PCB capabilityMaterial TypesShengyi, Taiwan Union, ITEQ, NanYa, Rogers, Panasonic, Isola (TG135/TG150/TG170, CAF/CTI>600, Halogen Free)Shengyi, Taiwan Union, ITEQ, NanYa, Rogers, Panasonic, Isola (TG135/TG150/TG170, CAF/CTI>600, Halogen Free)

The latest supplied columns are from 2023 and require factory confirmation before publication or quotation.
